Softbunpans fixed on Stainless Steel framefor Industrial Bakery lines
Material
Pan with Cup Indents seamless deepdrawn from Aluminized Steel.
Frame
Stable, dimensionally accurate stainless steel frame, matched to product and plant-specific requirements
Your Coating Options
Attention
Any desired size or individual configuration is possible. Below is a small selection of our moulds for industrial plants.
Hamburgerpans
| Number of Cups | Ø Top inside aprox. mm | Cup height mm | Overall Pan dimension (mm) | Itemcode |
|---|---|---|---|---|
| 56 = 8 x 7 | 100 mm (4 inch) | 16.4 | 1010 x 793 | 900020 |
| 56 = 8 x 7 | 100 mm (4 inch) | 31 | 1010 x 793 | 900021 |
Hotdogpans
| Number of Cups | Cup Indent Top inside aprox. mm | Cup height mm | Overall Pan dimension (mm) | Itemcode |
|---|---|---|---|---|
| 60 = 15 x 4 | 171 x 63.5 | 14 | 1318 x 852 | 900017 |
| 76 = 19 x 4 | 152 x 47 | 12.7 | 1318 x 850 | 900021 |
Ovalbunpans
| Number of Cups | Ø Top inside aprox. mm | Cup height mm | Overall Pan dimension (mm) | Itemcode |
|---|---|---|---|---|
| 36 = 9 x 4 | 124 x 105 | 20 | 972 x 574 | 900018 |

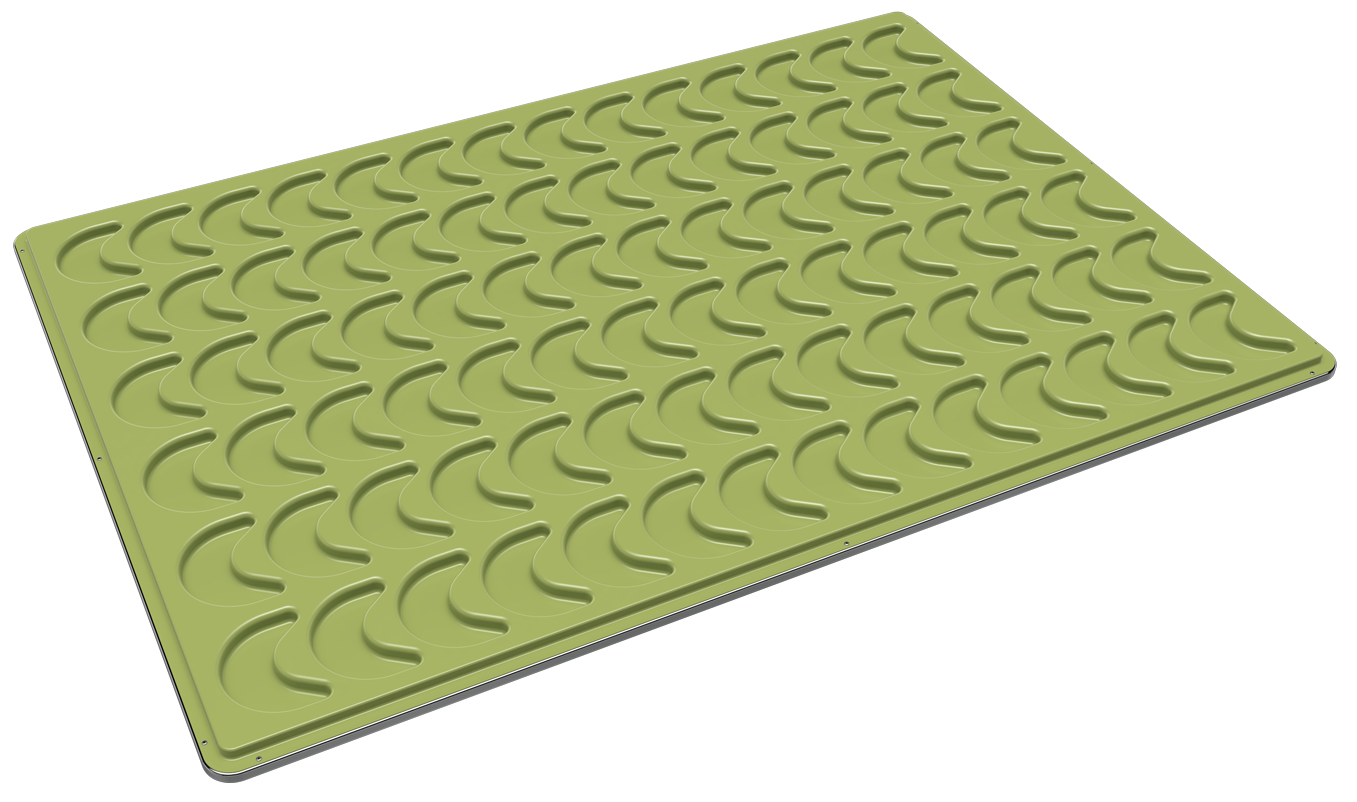

Crossaintpans
| Number of Cups | Ø Top inside aprox. mm | Cup height mm | Overall Pan dimension (mm) | Itemcode |
|---|---|---|---|---|
| 84 = 14 x 6 | 144 x 88 | 15 | 1598 x 1130 | 900019 |
